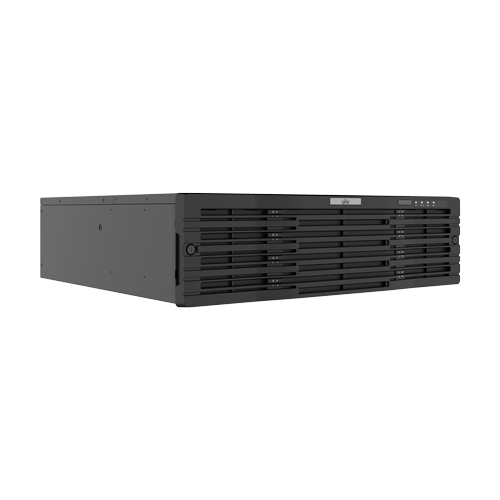

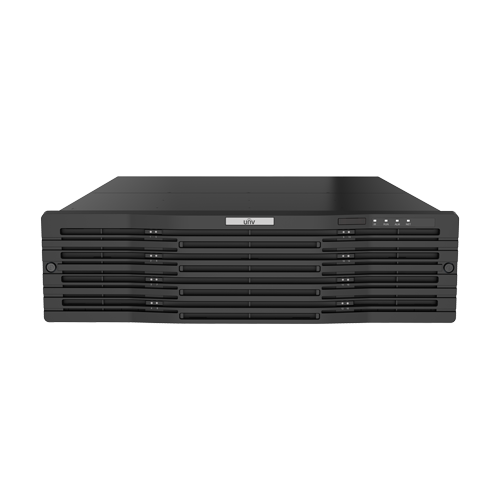

NVR516-64S

64-kanalni NVR; Pro serija; Do 12MP; 3U; 384Mbps; Metalno kućište, 16X SATA Hot Swap; Alarm I/O; Audio I/O; eSATA; RS485; RS232; 4x RJ45

64-kanalni NVR
Pro serija
Podržane rezolucije snimanja 12MP, 8MP, 6MP, 5MP, 4MP, 3MP, 1080P, 960P, 720P, D1, 2CIF, CIF
2x HDMI izlaz - ne podržava audio izlaz (do 3840x2160/30Hz, do 1080p/60Hz)
VGA
HDMI i VGA podrška za nezavisan pregled. Multi screen prikaz HDMI(1 i 2) 1/4/6/8/9/16/25/36/64 kamera
Multi screen prikaz VGA 1/4/6/8/9/16/25/36 kamera
Corridor prikaz 3/4/5/7/9/10/12/16/32
Podržava prihvat analitike sa kamera - Detekcija lica, Komparacija lica, Detekcija vozila, Detekcija prelaska definisane linije i ulaska/izlaska u definisani region, UMD, Detekcija temperature(Požar, Dim, Merenje temperature), Brojanje posetilaca, Video Metadata, Monitoring saobraćaja (na svim kanalima)
Podržane kompresije Ultra 265, H.265, H.264
Podržane audio kompresije G.711A, G.711U
Bit rate - Incoming: 384 Mbps, Outgoing: 384 Mbps
Kapacitet dekodiranja 4 x 12MP@20fps, 4 x 4K@30fps, 16 x 1080P@30fps, 36 x 720P@30fps, 64 x D1
Sinhroni playback prikaz na ekranu do 16 kamera
16x SATA III port (16TB maks.), HotSwap
2x RJ-45 port (10 /100M /1000M self-adaptive)
Protokoli TCP/IP, P2P, UPnP, NTP, DHCP, PPPoE, HTTP, HTTPS, DNS, DDNS, SNMP, SMTP, NFS, RTSP, 802.1x, IPV6
Interoperabilnost: ONVIF (Profile S/G/C/Q/A/T)
4x USB 3.0 (pozadi)
1x IN / 1x OUT Audio (BNC)
24x Alarm IN / 8x Alarm OUT
1x RS485
1x RS232
1x eSATA
12V izlaz
Dimenzije 3U 482mm × 477mm × 131mm (Š×D×V)
Masa ≤ 10Kg bez HDD-a
metalno kućište
Napajanje 100~240VAC, potrošnja ≤ 50W (bez HDD-a)
Radna temperatura: –10 °C to +55 °C
Sertifikacija CE,FCC, UL,RoHS, WEEE, EN 55032, EN 61000-3-3, EN IEC 61000-3-2, EN 55035, Part15 Subpart B

Detaljnije

Zatvori

Dodaj za uporedjivanje

Pogledaj PDF

SPECIFIKACIJE
DOWNLOAD

Osnovne informacije
Potkategorija	NVR uređaji
Naziv artikla	NVR516-64S
Brend	Uniview
Serija	Pro-serija
AI
AI snimača	Svi kanali (do ukupno 32 slike) Face Detection, Face Comparison, Vehicle Detection, Temperature Detection, SIP, UMD, Video Metadata, Traffic Monitoring
AI kamere	Face Detection; Face Comparison; Vehicle Detection; SIP (Intrusion Detection, Cross Line Detection, Enter Area, Leave Area); Ultra Motion Detection (UMD); Temperature Detection (Fire Detection, Smoking Detection, Temperature Measurement, Smoke and Fire Detection); People Counting (People Flow Counting, Crowd Density Monitoring); Video Metadata; Traffic Monitoring; VCA Search: Face Snapshot Search; Face Comparison Search; Motor Vehicle Search; Non-Motor Vehicle Search; Human Body Search; General Search; People Counting Report
Audio i video
Broj kanala	64 kanala
Propusni opseg mreže	320Mbps
Maksimalna rezolucija	12MP
Sposobnost dekodiranja	4 x 12MP@20, 4 x 4K@30, 16 x 1080P@30, 36 x 720P@30, 64 x D1
Video izlaz	HDMI: 4K(3840x2160)/30Hz, 1920x1080/60Hz, 1920x1080/50Hz, 1600x1200/60Hz, 1280x1024/60Hz, 1280x720/60Hz, 1024x768/60Hz, VGA: 1920x1080/60Hz, 1920x1080/50Hz, 1600x1200/60Hz, 1280x1024/60Hz, 1280x720/60Hz, 1024x768/60Hz
Multi-screen prikaz	NVR516-64S:VGA: 1/4/6/8/9/16/25/36; HDMI1/HDMI2: 1/4/6/8/9/16/25/36/64
Kompresija
Video kompresija	Ultra 265, H.265, H.264
Audio kompresija	G.711A, G.711U
Mreža
Protokoli	TCP/IP; P2P; UPnP; NTP; DHCP; PPPoE; HTTP; HTTPS; DNS; DDNS; SNMP; SMTP; NFS; RTSP; 802.1x; IPv6; IPv4
Web interfejs	Windows: IE (IE10/ 11), Firefox (v52.0 i novije verzije), Chrome (v45 i novije verzije), Edge (v79 i novije verzije)
Skladištenje
RAID	Da (0, 1, 5, 6, 10, 50, 60)
Alarm
Opšti alarm	Defocus Detection; Scene Change Detection; Object Left Behind; Object Removed; Auto Tracking; Motion Detection; Tampering; Human Body Detection; Video Loss; Alarm Input; Audio Detection
Alarm za anomalije	IP Conflict; Network Disconnected; Disk Offline; Disk Abnormal; Illegal Access; Hard Disk Space Low; Hard Disk Full; Recording/Snapshot Abnormal; High CPU Temperature; High Motherboard Temperature; Array Damaged; Array Degraded
Interfejs
Audio ulaz/izlaz	1 ulaz BNC; 1 izlaz BNC; Dvosmerni
Alarm	24 ulaza; 8 izlaza
HDD interfejs	16 SATA portova, do 16 TB kapaciteta po hard disku
eSATA	1
RS232	1
RS485	1
USB	Pozadi 4xUSB3.0
HDMI	2
VGA	1
Mrežni port	2 RJ45 10M/100M/1000M
Sertifikacije
Sertifikacije	CE; FCC; UL; RoHS; WEEE; CE: EN 55032, EN 61000-3-3, EN IEC 61000-3-2, EN 55035; FCC: Part15 Subpart B
Napajački deo
Napajanje	100–240 VAC
Potrošnja	≤ 50W (Bez HDD-a)
Okruženje
Uslovi rada	-10 °C ~ 55 °C
Konstrukcija
Tip kućišta	3U
Dimenzije	482mm ×478mm × 131mm
Težina neto (g)	10000
Tip montaže	Rek / stona montaža
